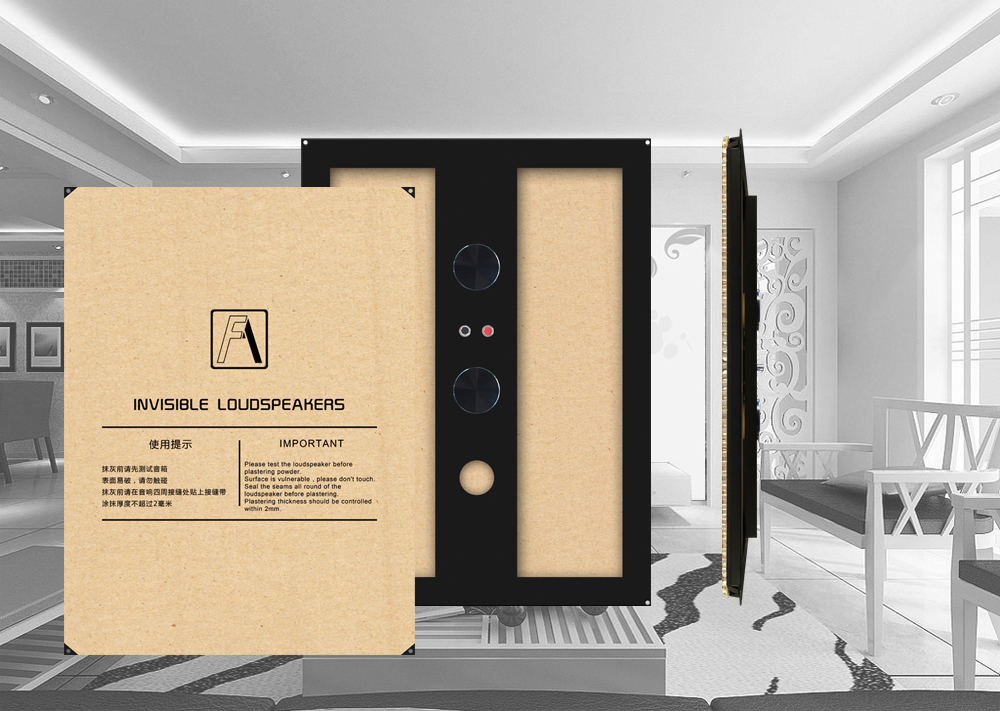

P-3042双磁平板箱

厚度仅3.2cm，隐其形 听为境。隐藏安装于墙壁，无指向性平面声源，高清晰高还原 ，平面蜂巢振动结构 ，180°全范围发声

                                System parameters:

                                Speaker type：                                        hidden

                                Number of drives：                                 double drive

                                Rated power：                                         80W

                                Frequency response：                             120hz-20khz (- 10dB)

                                Rated impedance：                                  4 Ω

                                Sensitivity：                                             88DB

                                Connector type：                                    red and black terminal

                                Available surface：                                  aluminum honeycomb paper surface

                                Panel size：                                             300 wide × 400 high × 35 thick mm

                                Installation dimension：                         325 w × 425 h × 55 THK mm

                                Coverage angle：                                   plane 180 degrees

                                系统参数：
                                扬声器类型：                                           隐藏式
                                驱动数量：                                              双驱动
                                额定功率：                                              80W
                                频率响应：                                              120Hz-20KHz（-10dB)
                                额定阻抗：                                              4欧
                                灵敏度：                                                 88dB
                                连接器类型：                                          红黑接线柱
                                可用表面：                                             铝蜂巢纸皮表面
                                面板尺寸：                                             300宽×400高×35厚mm
                                安装尺寸：                                             325宽×425高×55厚mm
                                覆盖角度：                                             平面180度
