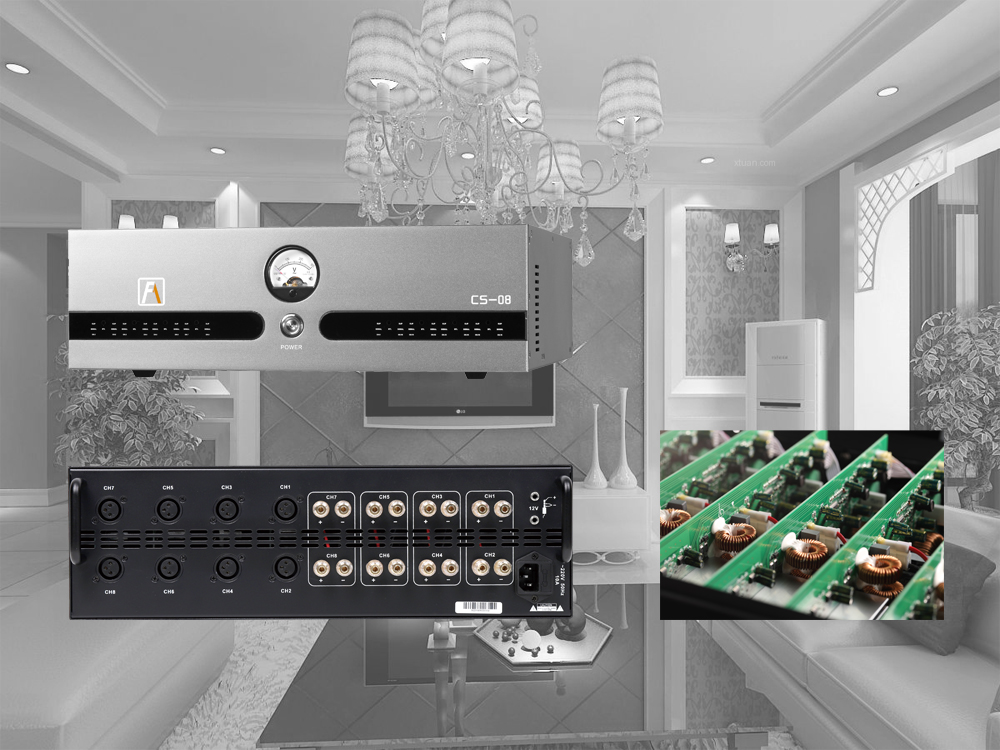

CS-08专业功率放大器

                                  System parameters:
                                  Output power:                                     (AC load)
                                                                                               8x 220W RMS (4 ohms) Continuous Power
                                                                                               8x 350W RMS (2 ohms) Continuous Power
                                                                                               8x 450W RMS (1 ohm) Continuous Power
                                  Harmonic distortion:                            <5% 1KHz (below 2 Euro load)
                                  Frequency response:                            10Hz～30KHz(+1/-1dB)
                                  SNR:                                                      111dB
                                  DNR:                                                     115dB
                                  Power Supply:                                      170V～250V 50Hz
                                  Power Consumption:                           5000W
                                  Size (height x width x depth):              132x430x420mm
                                  Weight:                                               28KG

                                  1、8-channel current type D pure after power amplifier;
                                  2、8 sets of 36V high current (A type power supply);
                                  3、98% of the D-class set up successfully;
                                  4、up to 5-10 amps per channel current;
                                  5、can be as low as 1 euro AC load;
                                       (毎 175W/4 Euro-450W/1 Euro)
                                  6、thick low frequency

                                  7、 clean, transparent, delicate high frequency;
                                  8、Live tongue movement of the full-range speaker, free and easy movement, and completeness;
                                  9、powerful current to promote the dynamic control of ultra-low unit, light weight, low-frequency scene accurate

                                        reduction;
                                  10、the whole net weight: 32 kg;

                                  系统参数：

                                  输出功率：                                  (交流负载)
                                                                                     8x 220W   RMS (4欧)    连续功率
                                                                                     8x 350W   RMS (2欧)    连续功率
                                                                                     8x 450W   RMS (1欧)    连续功率
                                  谐波失真：                                  <5%  1KHz(低于2欧负载时）
                                  频率响应：                                  10Hz～30KHz(+1/-1dB)
                                  SNR：                                         111dB
                                  DNR：                                        115dB
                                  电源：                                         170V～250V  50Hz
                                  功耗：                                         5000W
                                  尺寸（高x宽x深）：                    130x430x420mm
                                  重量：                                        28KG

                                  1、8声道电流型D类纯后级功放；
                                  2、8组36V大电流(甲类电源)；
                                  3、效率98%的D类集成功放；
                                  4、每声道高达5-10安培电流；
                                  5、可低至1欧交流负载；
                                  (毎声道175W/4欧-450W/1欧)
                                  6、厚实的中低频；
                                  7、干净，通透，细腻的中高频；
                                  8、对全频扬声器的活舌运动，收放自如，毫厘毕现；
                                  9、强大的电流推动对超低单元的动态控制，举重若轻，低频场景精准还原；
                                  10、整机净重：32公斤；
